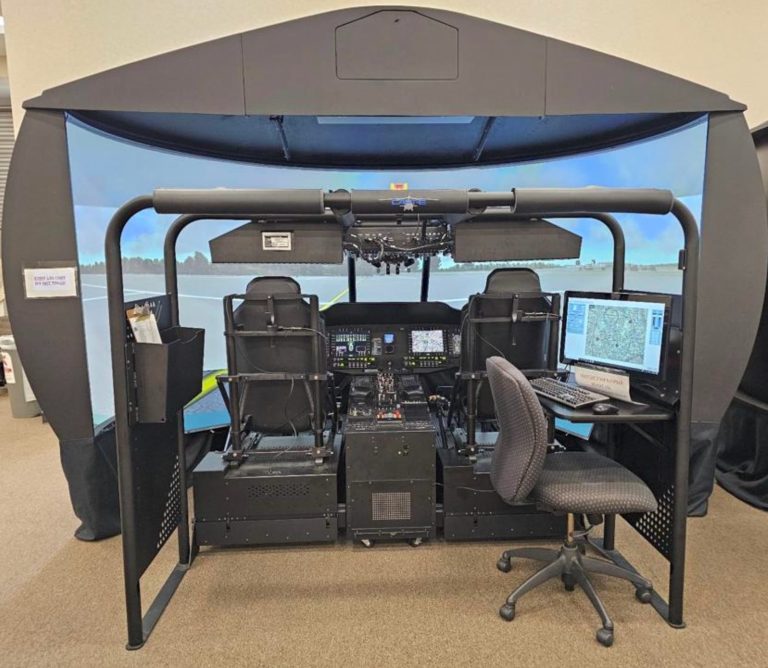

UH-60M CAPT-EVCS w/Dome

UH-60M Cockpit Academic Procedural Tool – Enhanced Visual and Control System (CAPT-EVCS) at a Glance

Introduction: The UH-60M CAPT-EVCS is a Directorate of Simulations (DoS) accredited device that is both a prescriptive (Rx) individual & crew trainer and a collective multi-ship, multi- crew trainer providing a high level of physical and visual fidelity to accomplish cost effective training for Army aviation.

Procurement: $2.7M to $4.0M (depending on build options)
Installation Cost: $35K (CONUS)
Footprint: 10-3’L x 12-3’W x 9’H (dome visual option)
Temperature & Humidity Requirements: 64°F to 85°F & 40% to 60% humidity
Power: 2x 20 amp/ single phase/120 volt
Spares Package: $289K
3-Year Warranty w/Initial Purchase: $255K
Annual Sustainment After Warranty: $84K (parts, software, FSR support)

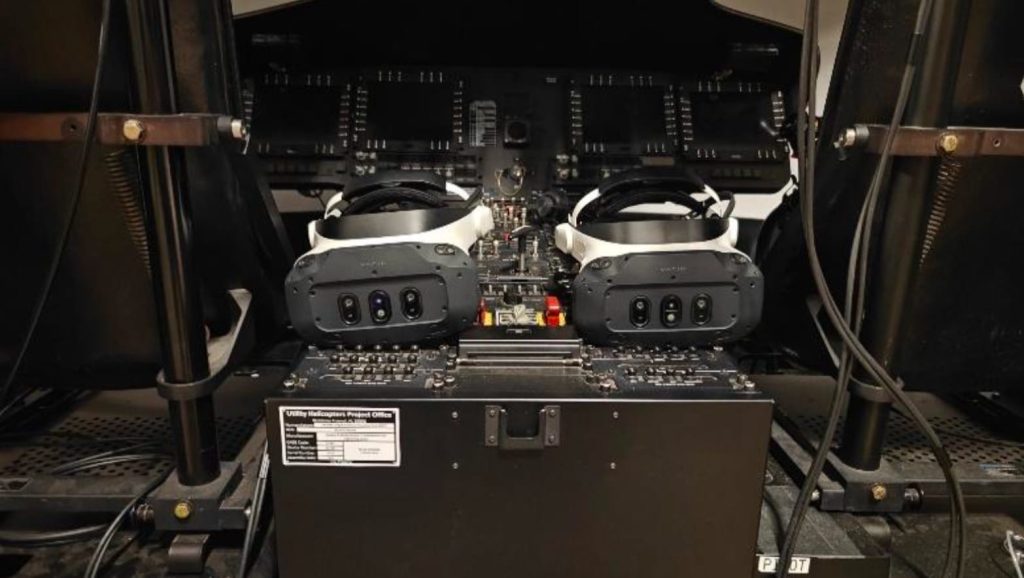

Varjo XR-4 Head Mounted Display (HMD

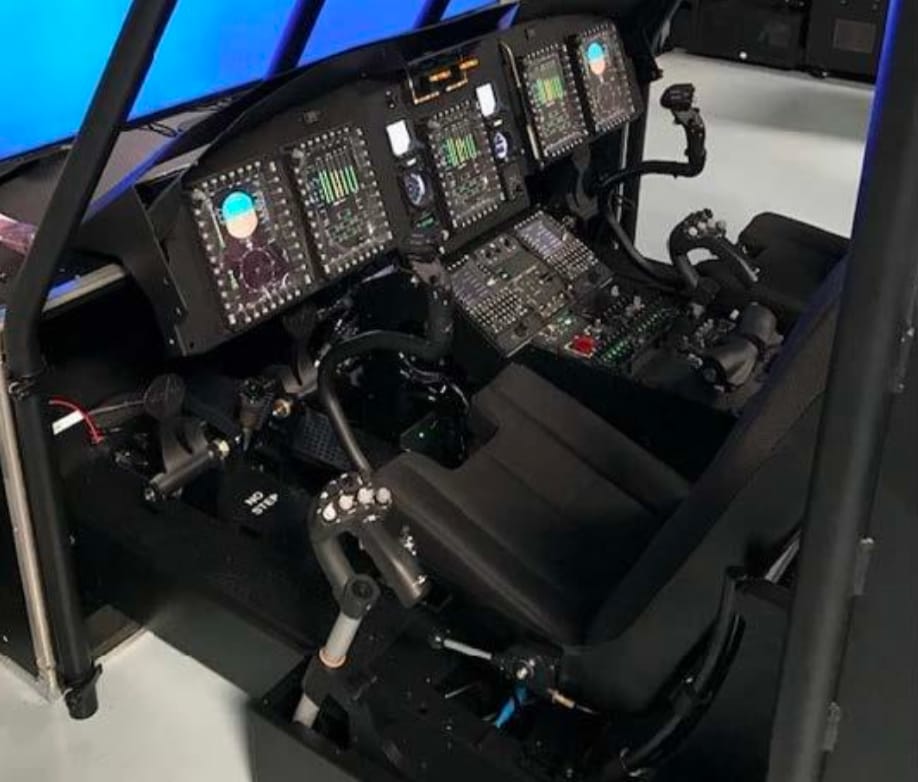

UH-60M CAPT-EVCS co-pilot seat

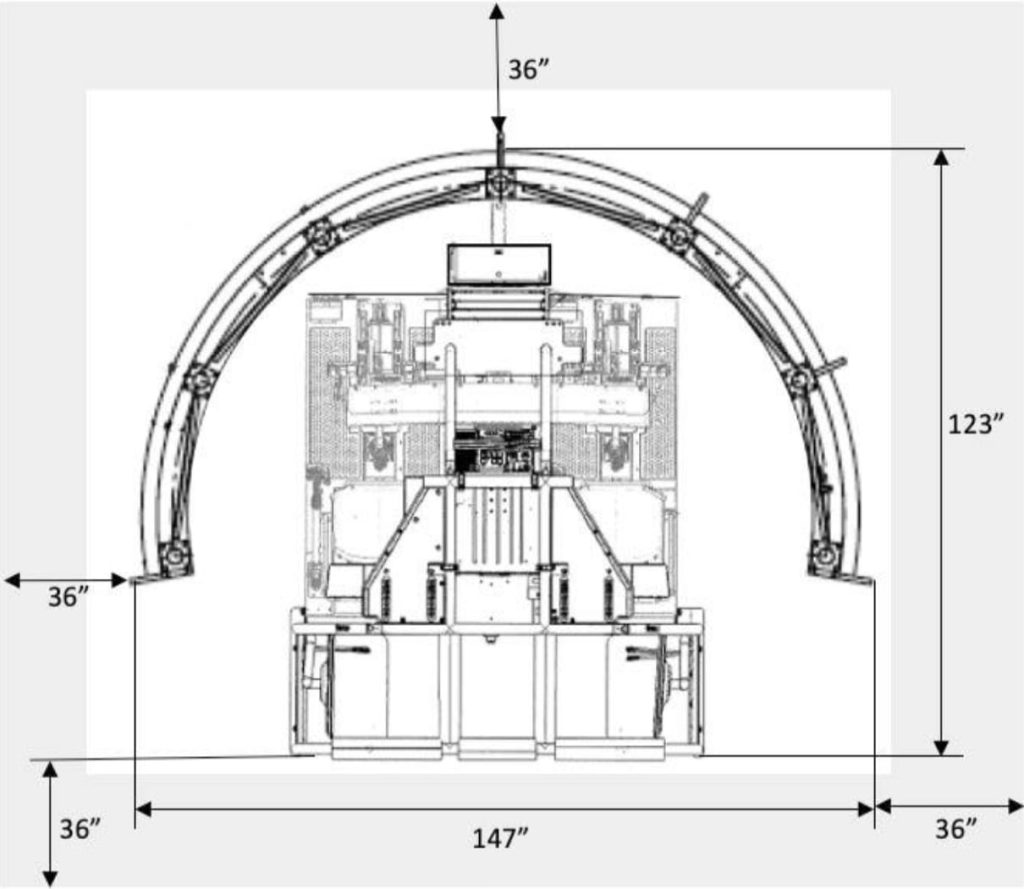

Dimensions of CAPT-EVCS w/Dome

Highlights and Advantages:

  • Power requirement is standard U.S. electrical socket (120V)
  • Small footprint to accommodate existing structures (no MILCON or UMMC)
  • All simulator hardware is non-OEM parts, non-competitive with aircraft parts and manufactured by SGB.
  • Aircraft Avionics Procedural Software (AAPS) is Army owned and Modular Open System Approach (MOSA) compliant software
  • No requirement to go through OEM for updates. AAPS is concurrent w/aircraft
  • AAPS MOSA approach integrates Modern Air Combat Environment (MACE) Augmented Reality Mission Observation and Rehearsal (AROMR). Same software being issued to all Army aviation Aircraft Mission Survivability Officers (AMSOs)

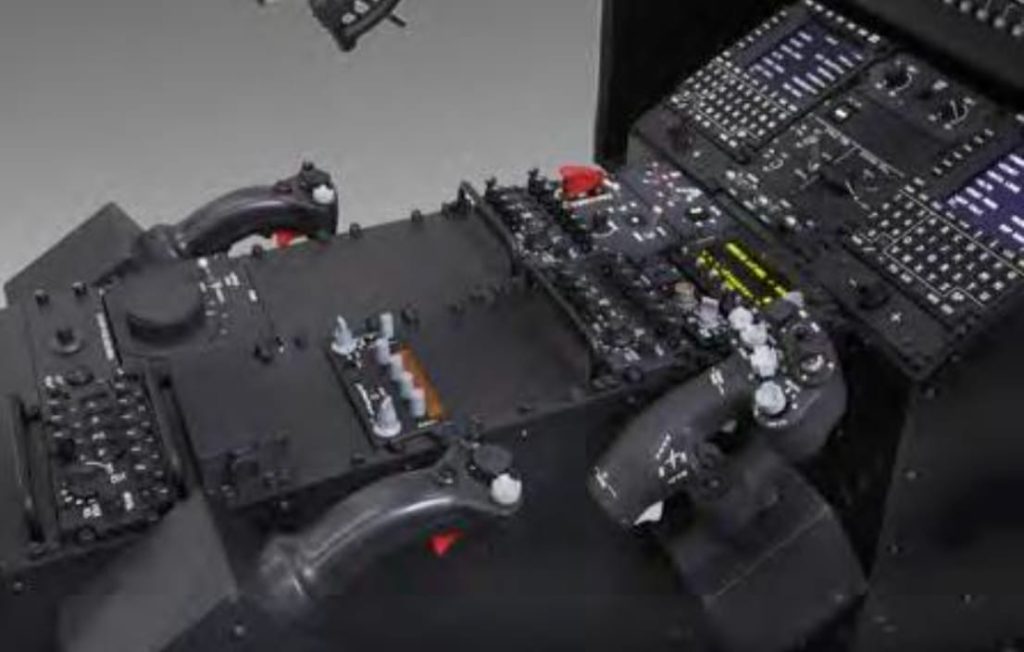

  • CAPT-EVCS is equipped with motion cueing seats to enable proprioceptive feedback

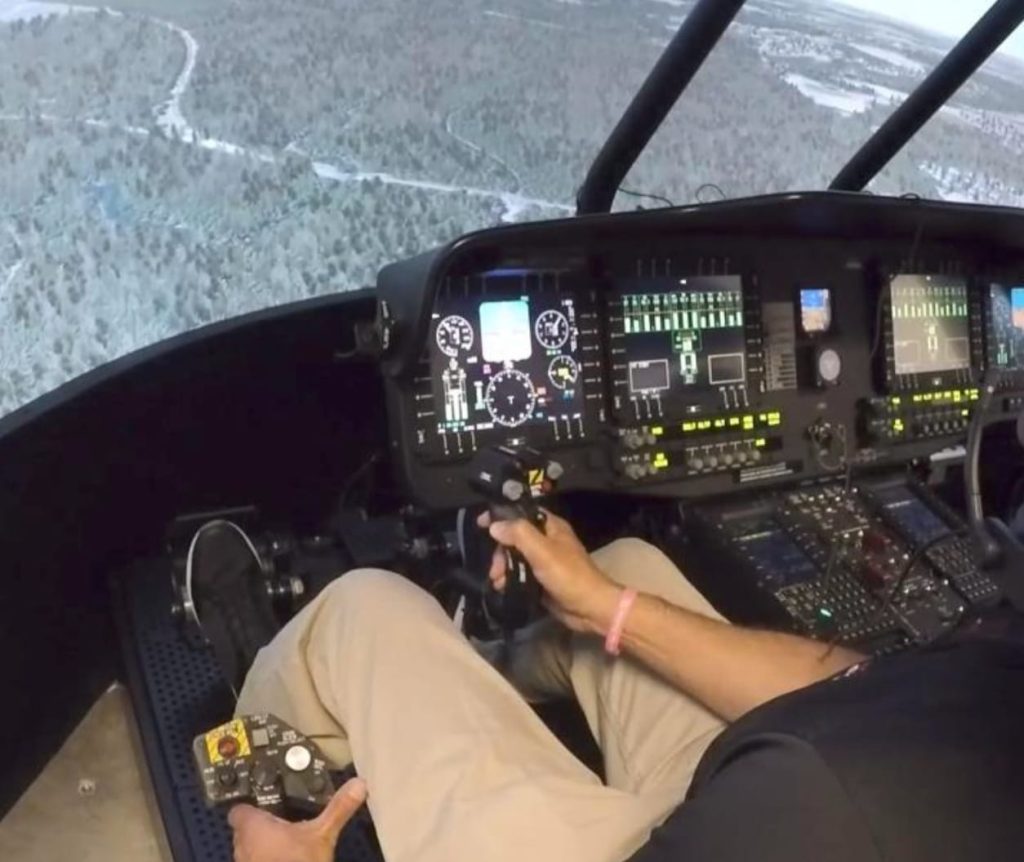

  • Visual system allows for traditional dome visuals to enable integration of HGU-56 helmet or switch to Head Mounted Display (HMD) to allow for unrestricted FOV, fully immersive

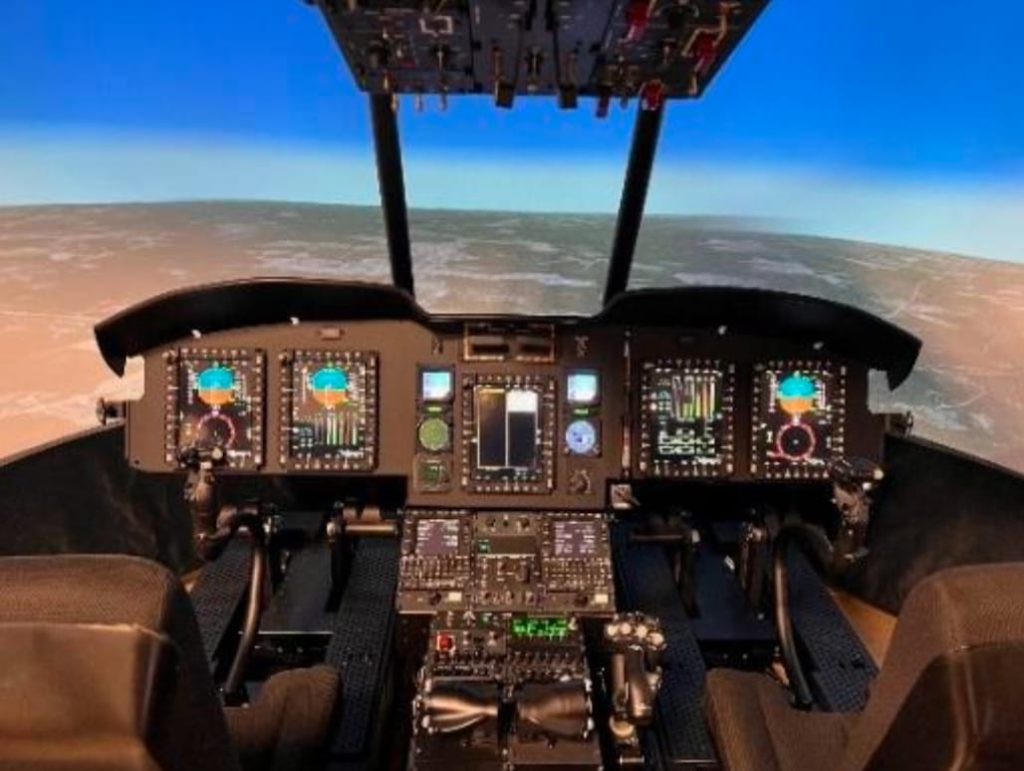

  • Capable of supporting all modes of flight (D/N/NG/W/H)
  • Varjo XR-4 HMD is set-up for Extended Reality (XR). Multi-Functional Displays (MFDs) have the same screen with the HMD (no-blank screens). Cut-away areas to see pilot/co-pilot hands
  • Accredited to log flight time in CAFRS now. ARNG can pay RCMs Additional Flight Training Periods (AFTPs)
  • Leveraging Artificial Intelligence (AI) in existing configuration (instructor pilot module loaded in CAPT-EVCS at AVCOE). Can expand AI capability
  • Costs associated with CAPT-EVCS (procurement, warranty, and sustainment) are 80% cheaper than legacy simulators.
  • Device can be Government Owned Government Operated (GOGO) + Contract Logistical Support (CLS) to decrease costs or scaled up to Contract Owned Contract Operated (COCO)
  • Operating cost is a fraction of legacy simulators. 1xCAPT-EVCS ~$84K/year at 3,000 hours utilization compared to 1xBAT ~$1.1M/year at 1,920 hours utilization
  • CH-47F CAPT-EVCS built, tested, and ready for accreditation!

CH-47F CAPT-EVCS

CAPT WORLDWIDE DEPLOYMENT
